3D Models

Mounts

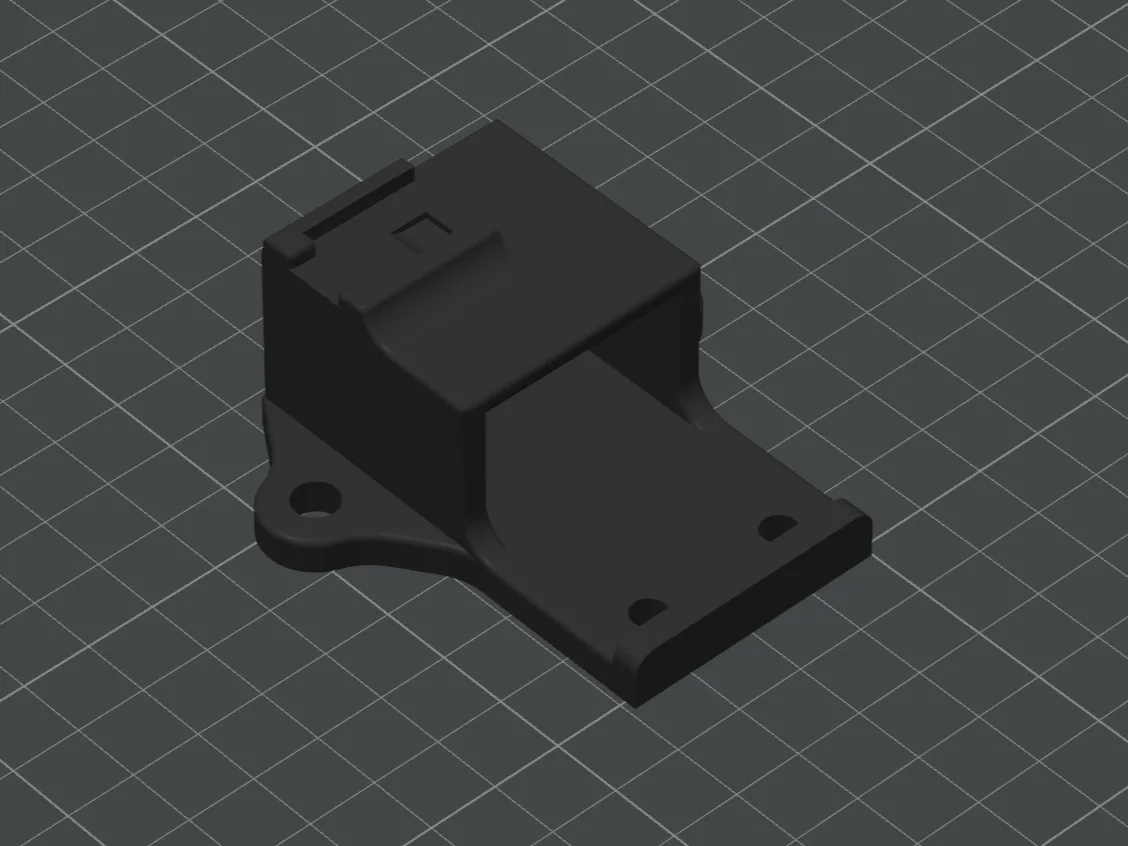

Property of Racing Custom Parts, you can't earn on it, but you can use it and print for your racing freinds :) if you need some cnc parts, find us: Racing Custom Parts you will need Deutsch connector: DT04-2P check your MAC valve becasue there is many models and size

Mounts

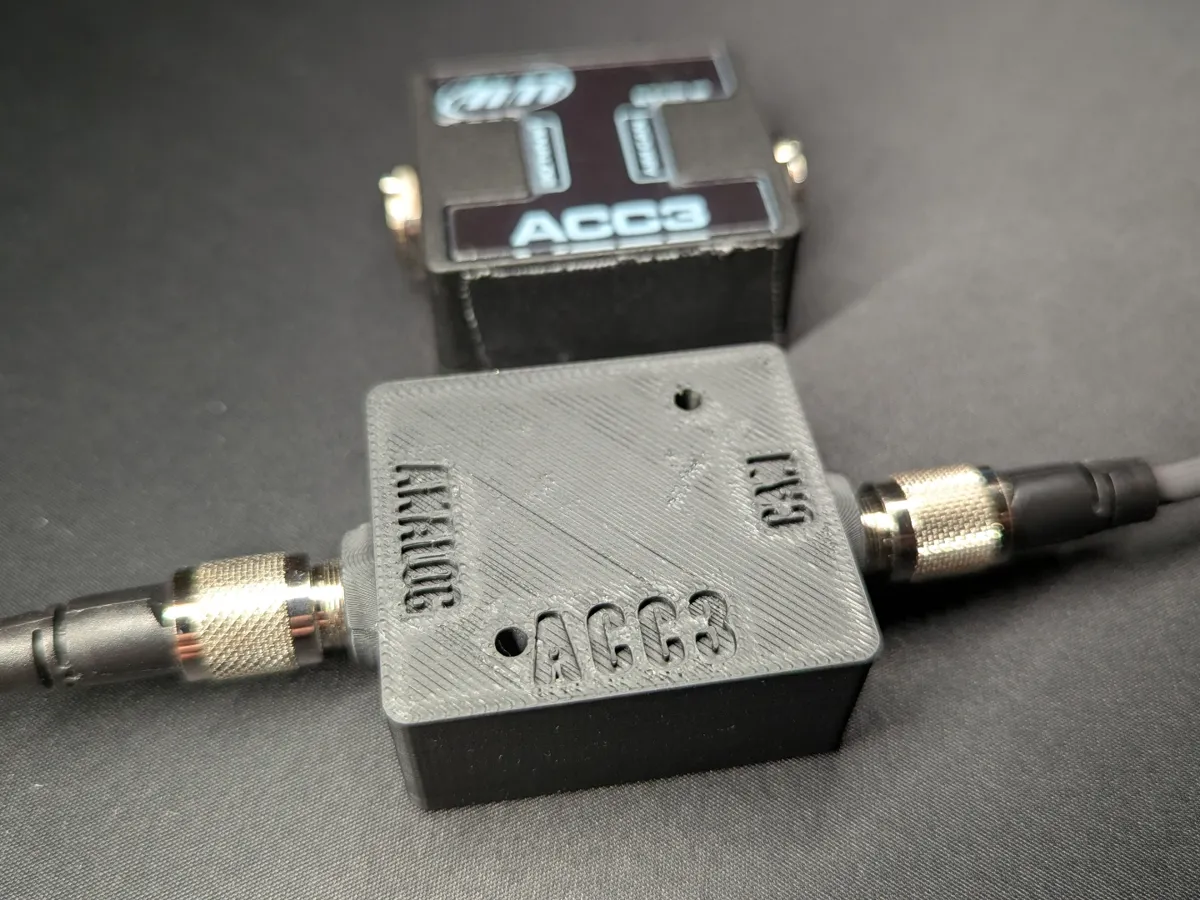

This is a non-functional model of the AiM Sportline ACC3 device, used for connecting sensors to the AiM CANbus. You can print this out and place it on your vehicle (car, motorcycle, etc.) to determine if the ACC3 will work for your needs, identify where to locate the ACC3, determine cable routing, mounting approaches, etc. This has the exact same dimensions of an actual ACC3 device. I have add two through-holes which are located in the same position as the mounting threads on the bottom of the ACC3. You can place a 2.5mm transfer punch inside these holes to mark the location for drilling holes into the mount to hole the ACC3.

Mounts

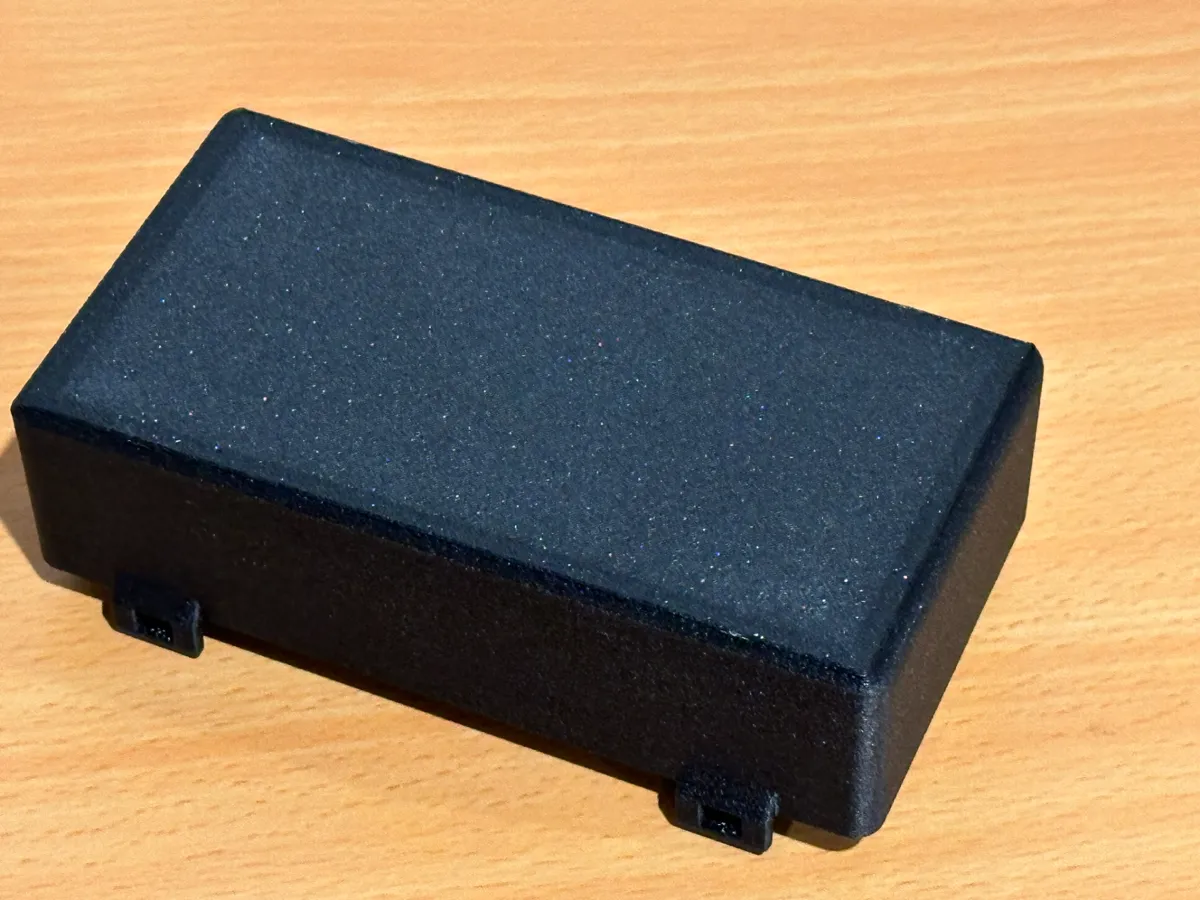

Not everyone wants a big Haltech logo on the fusebox that comes with the Haltech Elite ECU's, I know I don't. This fits the Haltech fuse box and also holds spare fuses as per the original design. Recommended to print in a material that will put up with the heat of where you have mounted the fuse box in your car.

Mounts

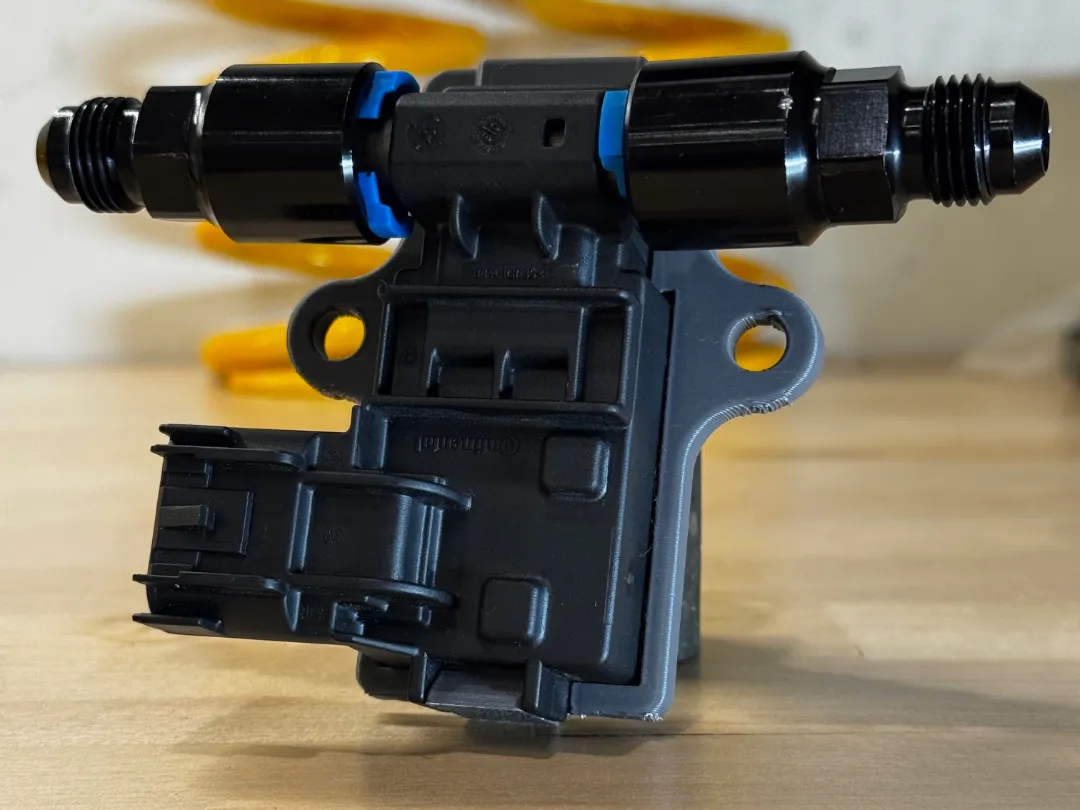

Bracket for Continental Flex Fuel sensor. The sensor clips into the bracket as GM had originally intended. There are two M6 sized mounting holes which are spaced 55mm apart. I have it setup to print vertical with supports to ensure the layers are the correct orientation to reduce the chance of the locking tab from breaking off. This will work with many other popular aftermarket flex fuel sensors such as Haltech or AEM as they all use the same Continental sensor.

Mounts

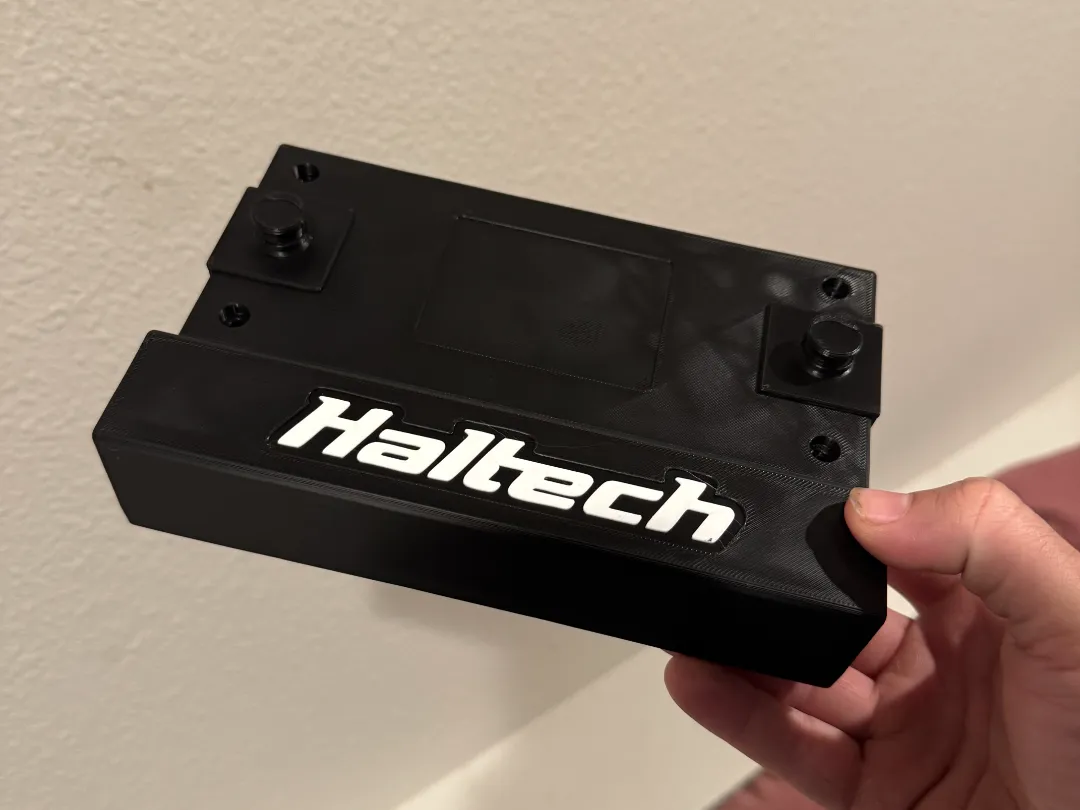

hello fellow car enthusiasts. I plan on putting a Haltech R3 ECU into my racecar I am building.. but at the moment, haven't purchased one. I wanted to see where I could possibly mount one in my car for mockup purposes but only had found the R5 model online (perfectly modeled i might add). Well I did some digging and found a dimensional drawing on Haltech's website and decided to model one in Fusion. It's not 100% perfect and it doesn't have connectors on it obviously. But it's more than enough to get by as least for placement purposes. It may not be perfect but the mounting locations for hardware are correct (i think). enjoy my mediocre cad skills and print this. ALSO works for LS REBEL ECU since they are the same housing Boost MeOh.. if it helps you, send me a boost. this was hard for me to model since I am new to CAD.

Mounts

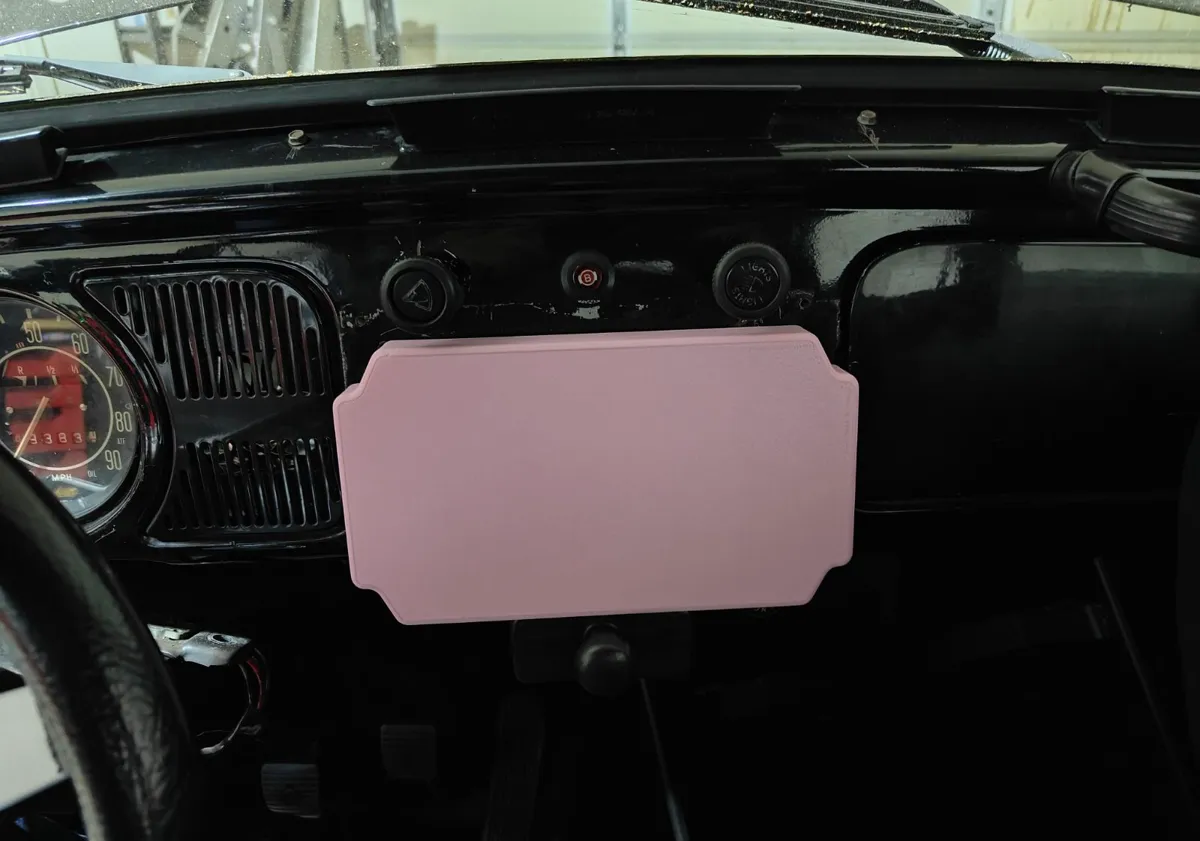

Sheel of a Haltech IC7 digital display simply for sizing mockup and placement in interior

Mounts

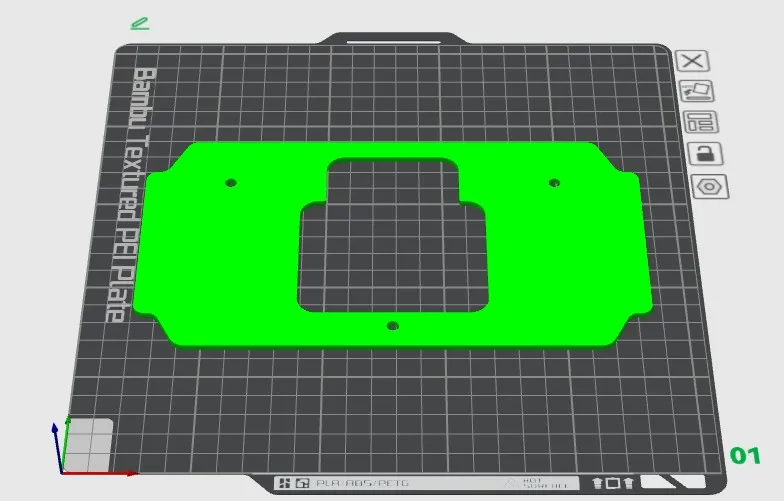

Haltech IC-7 Dash mounting template.

Mounts

I have a Haltech ECU in my Classic Mini, and I wanted to add a simple under-dash gauge and a 2 x 4 Keypad mount. I made a small bracket that will allow you to easily mount this under your dash with a bit of industrial velcro or double-sided tape. I also made a version without the 52mm gauge pod in case you just wanted to use the keypad alone.
